Description

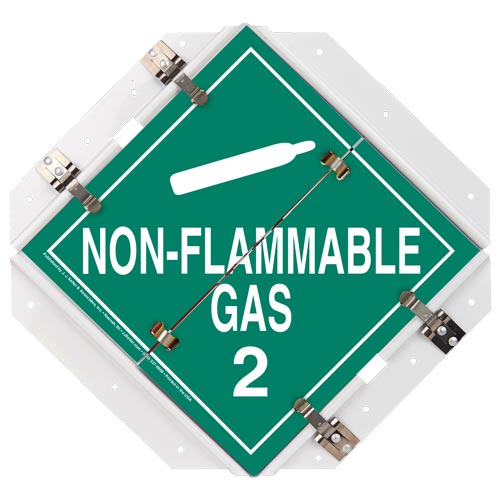

- Flip-file placard meets DOT placarding specifications of 49 CFR § 172.519 as well as Transport Canada marking & placarding specifications
- J. J. Keller® Dura-Clip® fasteners stop clip arms from being dislodged
- Heavy-duty (super) placard legend features 33% thicker aluminum (.032″ versus the industry-standard .024″ or less)
- Super back plate features 25% thicker aluminum (.040″ vs. industry-standard .032″) to better withstand abuse of challenging environments and provide long-term reliability & greater utility
- Aluminum contains 75% post-consumer recycled content
- Base and legends have pre-formed white painted finish
- Four stainless steel reinforced quick-release clamps hold panels securely in place
- Clipped corners on top and bottom to accommodate roll-up door applications
- Full ink bleeds (color runs all the way to the edge of legend panels)
- Rectangular-shaped placard legend panels:
- lessen the risk of injury from bent and dog-eared pages
- provide greater strength/rigidity all the way to the corners
- improve stability due to hinges being closer to panel corners
- reduce noise and vibration which leads to long-term performance
- improve placard appearance due to less hinges being used
- Complies with ISO 9000 Green Initiative, California Buy Recycled program and EPA Comprehensive Procurement Guidelines (CPG) program
Back Plate Measurements:
- Side to side – 14.25″ x 14.25″ (363mm x 363mm)
- Left to right (corner to corner) – 16″ (408mm)
- Top to bottom (corner to corner) – 15.5″ (394mm)
Flip Placard Legends (Wordless):
- Class 3 Flammable Liquid
- Class 8 Corrosive
- Division 5.1 Oxidizer
- Dangerous
- Blank
- Division 4.1 Flammable Solid
- Division 2.2 Non-Flammable Gas
- Division 2.3 Toxic Gas
- Division 6.1 Toxic Substances
- Division 2.1 Flammable Gas
